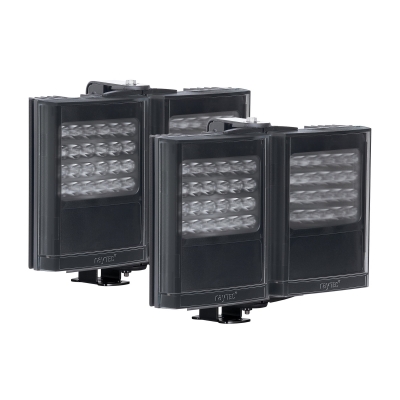

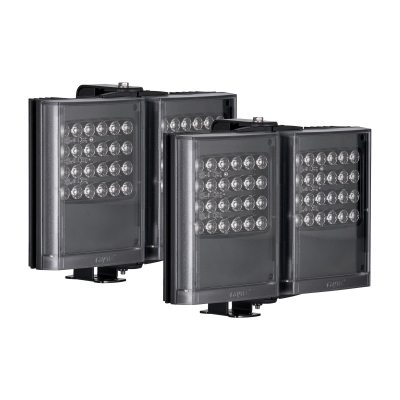

VARIO 2 PULSESTAR i96 High Intensity Pulsed Infra-Red Illuminator
High Intensity Pulsed Infra-Red Illuminators
OVERVIEW
PULSESTAR Infra-Red illuminators deliver powerful pulsed lighting for transport and machine vision applications including ANPR/LPR. With up to 880W of lighting drive power, Platinum Elite twin-core SMT LEDs and illumination that can be pulsed in synchronisation with the camera shutter, they deliver high intensity lighting on-demand to illuminate fast moving objects. All models feature an interchangeable lens system with Hot-spot Reduction Technology for perfect even illumination. Universal 100-230V AC PSU included (24V DC optional).
KEY FEATURES
External Power Supply (included): Universal 100-230V AC PSU (24V DC optional).
High Intensity - up to 880W Lighting Drive Power
Easily link Lighting Pulse with Camera Shutter (TTL - 3.3-24V DC)
Platinum Elite twin-core SMT LEDs

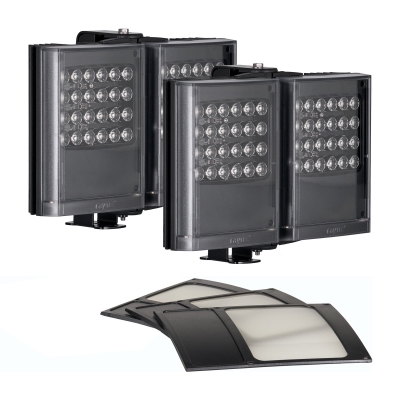

VARIO Interchangeable Lens System
Angles from 10-35 degrees - from 1 product
Extreme Long Life and Low Maintenance
Hot-spot Reduction Technology
SPECIFICATIONS
Angles and maximum distances:
10˚H x 10˚V - between 50 and 60 meters (164-179ft)
20˚H x 10˚V - between 30 and 34 meters (98-112ft)
35˚H x 10˚V - between 26 and 30 meters (85-98ft)
Other angles available on request.
Lighting Drive Power (pulsed): 880W
Input: Universal 100-230V AC PSU included (24V DC options available - Contact RayLED)
Consumption: 88W
Number of LEDs: 96
LED type: Platinum Elite twin-core SMT LEDs
Wavelength: 850nm (940nm options available)
Beam Shape: Elliptical with HRT (Hot-Spot Reduction Technology)
Beam Angle System: VARIO Interchangeable Lens System
Typical Pulse Width: 2 ms
Trigger Input: TTL - 3.3 - 24V DC
12V DC Power Output: 1A
Control / Communication: Ethernet
