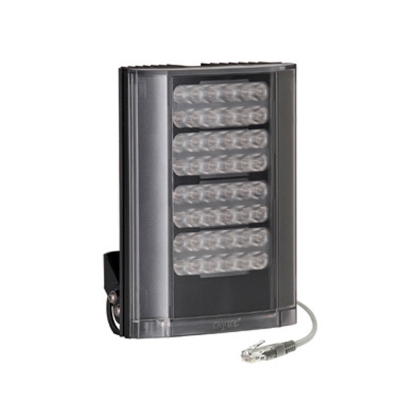

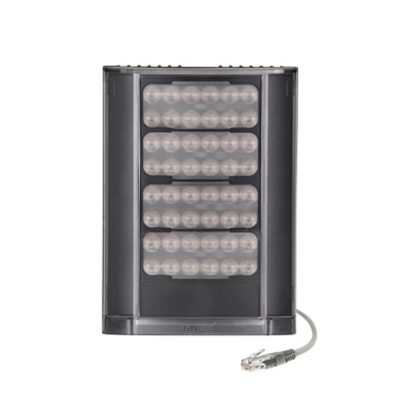

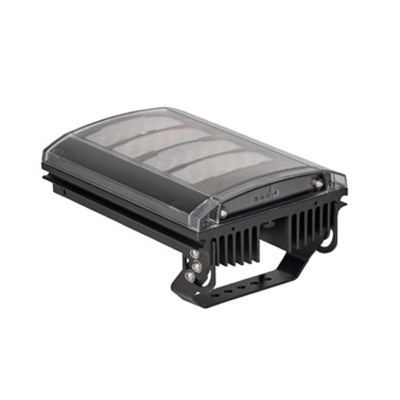

VARIO 2 IP POE - VAR2-IPPoE-i16-1 Long Range Infra-Red Network Illuminator

Specifications:

Distances:

Guide:

Dedicated IP Lighting for Network Cameras

Smart and Programmables

OVERVIEW

VARIO2 IP illuminators provide dedicated lighting for IP cameras. They provide the ultimate solution for smart, situation -dependent lighting for video surveillance and can be fully integrated into an IP eco-system. VARIO2 IP enables users to create dynamic lighting systems, capable of controlling illuminators individually or in groups, to automatically deliver the exact amount of light where and when it is needed, improving image quality under any condition.

Set up is quick and easy, with Discovery software provided as standard. VARIO2 IP also reduces visits to site, minimising transport and labour costs and saving time, whilst ensuring maximum performance from your system at all times.

VARIO2 IP illuminators use PLATINUM Elite SMT LED technology to deliver more power and greater distances from a smaller platform than current generation illuminators.

The VARIO2 IP i16-1 Infra-Red network illuminator delivers maximum distances up to 500m (1,640ft).

KEY FEATURES

Dedicated IP Lighting
PLATINUM Elite SMT LED Technology
Integrated Web Interface
Advanced User Defined Settings
API for Platform Integration
HTTP Commands as Standard
Platinum Elite SMT LED Technology

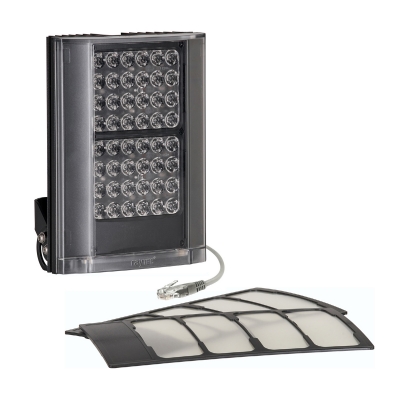

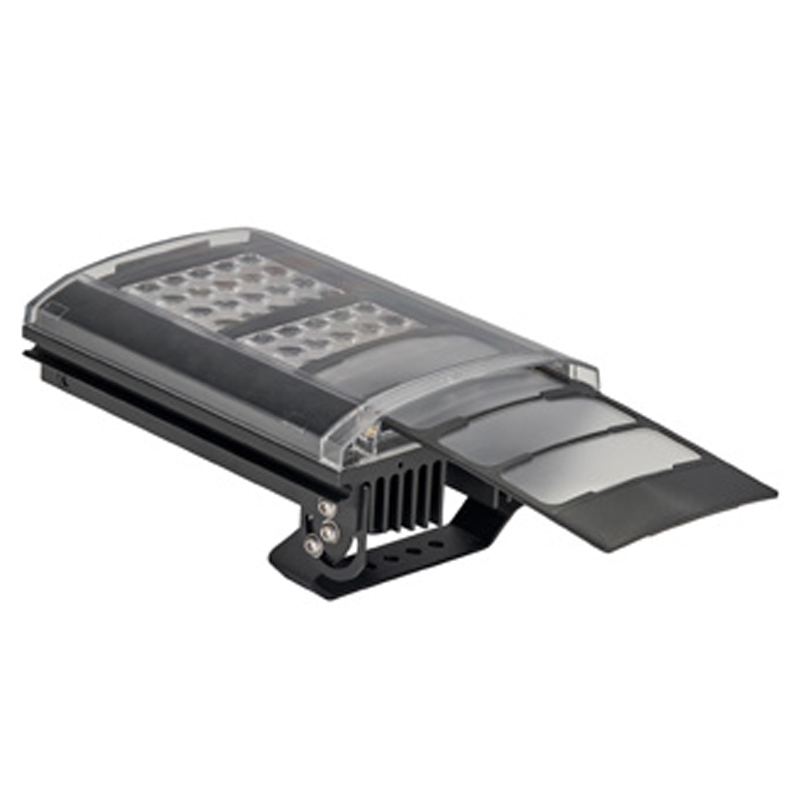

VARIO Interchangeable Lens System
Hot-spot Reduction Technology (HRT)


SPECIFICATIONS

Max Distance: 500m (1,640ft)
Angles and Max Distances:
10°x10° - 500m (1,640ft)
35°x10° - 250m (820ft)
60°x25° - 135m (443ft)
80°x30° - 105m (344ft)
120°x50° - 65m (213ft)
Input: 24V DC
Number of LEDs: 48
Wavelength: 850nm (940nm options available)
IP rating: IP66
Temperature Range: -50° to +50°C (-58 to 122°F)
