VARIO 2 Lighthouse Kit (VLK) - VAR2-VLK-hy6-2 Hybrid Illuminator and Camera Housing

Specifications:

Distances:

Guide:

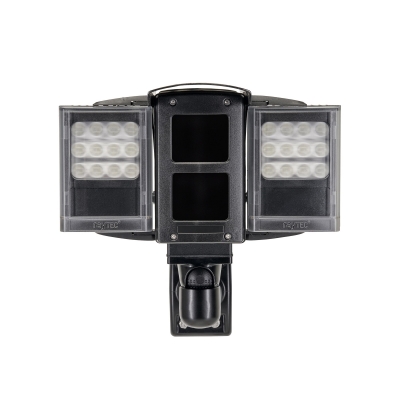

VARIO 2 VLK Hybrid - Hybrid Illuminator and Camera Housing

The VARIO2 Lighthouse Kit (VLK) is a fully integrated lighting, camera housing, and mounting bracket solution. VLK hy6 series provides two inbuilt VARIO2 Hybrid (combined Infra-Red and White-Light) illuminators and mounting for up to two IP or Analogue cameras, and using PLATINUM Elite twin-core SMT LEDs delivers world leading power and illumination distances for a variety of applications including video surveillance and ANPR/LPR. Its Integrated Control Interface delivers the highest level of flexibility to configure multiple situational dependant lighting actions. VLK also provides integrated bracketry for easy mounting. It is cable managed and pre-wired with power/aux cable and CAT5e cable. Incorporating all standard VARIO2 family features, including interchangeable lens system and hot-spot reduction technology (HRT), the VLK hy6 series produces outstanding night-time images with maximum distances up to 254m (833ft) IR and 124m (407ft) WL.

KEY FEATURES

Full Lighting System with Camera Housing
Two VARIO2 Hybrid LED Illuminators
Accommodates up to 2 Cameras: IP or Analogue
Integrated Control Interface
Cable managed, Integrated bracket and Pre-wired
PLATINUM Elite twin-core SMT LED Technology
Hot-spot Reduction Technology (HRT)

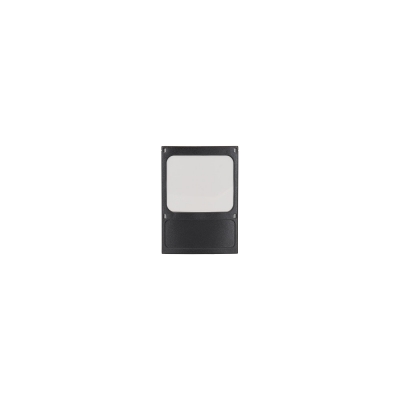

VARIO Interchangeable Lens System
VARIO Remote Control (optional)

SPECIFICATIONS

Max Distance: up to 254m (833ft) in IR and 124m (407ft) in WL.
Angles and Max Distances:
10°x10° - 254m (833ft) IR and 124m (407ft) WL
35°x10° - 152m (499ft) IR and 73m (240ft) WL
60°x25° - 89m (292ft) IR and 39m (128ft) WL
80°x30° - 63m (207ft) IR and 28m (92ft) WL
120°x50° - 38m (125ft) IR and 20m (66ft) WL
Input: 24V DC
Beam Shape: Elliptical with HRT (Hot Spot Reduction Technology)
Beam Angle System: VARIO interchangeable lens system
Consumption: 53W (including approx. camera consumption) 21W per LED panel
LED Type: Platinum Elite twin-core SMT LEDs
Number of LEDs: 12x Infra-Red, 12 x White-Light
Power Output (Luminous Flux): 2980lm
Wavelength: 850nm & White-Light
