VARIO 2 Lighthouse Kit (VLK) - VAR2-VLK-w4-2 White-Light Illuminator and Camera Housing

VARIO 2 Lighthouse Kit (VLK) - VAR2-VLK-w4-2 White-Light Illuminator and Camera Housing




988.40

VAR2-VLK-w4-2
+
Specifications:
Distances:
Guide:

VARIO 2 - Lighthouse Kit (VLK) Fully Integrated Lighting

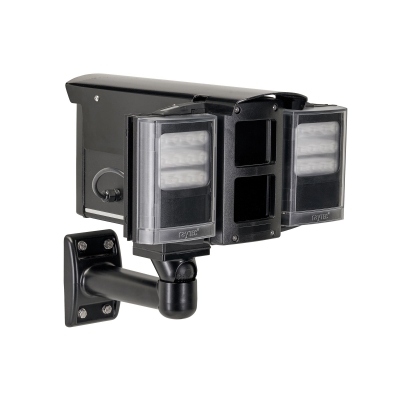

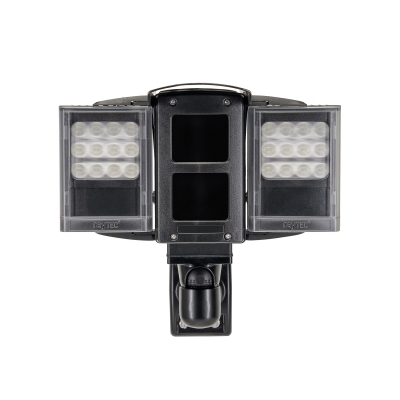

The VARIO2 Lighthouse Kit (VLK) is a fully integrated lighting, camera housing, and mounting bracket solution. VLK w4 series provides two inbuilt VARIO2 White-Light illuminators and mounting for up to two IP or Analogue cameras, and using PLATINUM Elite SMT LEDs delivers world leading power and illumination distances for a variety of applications including video surveillance and ANPR/LPR. Its Integrated Control Interface delivers the highest level of flexibility to configure multiple situational dependant lighting actions. VLK also provides integrated bracketry for easy mounting. It is cable managed and pre-wired with power/aux cable and CAT5e cable. Incorporating all standard VARIO2 family features, including interchangeable lens system and hot-spot reduction technology (HRT), the VLK w4 series produces outstanding night-time images with maximum distances up to 155m (509ft).

KEY FEATURES

Full Lighting System with Camera Housing
Two VARIO2 White-Light LED Illuminators
Accommodates up to 2 Cameras: IP or Analogue
Integrated Control Interface
Cable managed, Integrated bracket and Pre-wired
PLATINUM Elite SMT LED Technology
Hot-spot Reduction Technology (HRT)

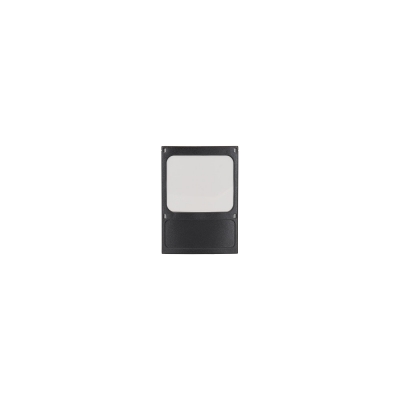

VARIO Interchangeable Lens System

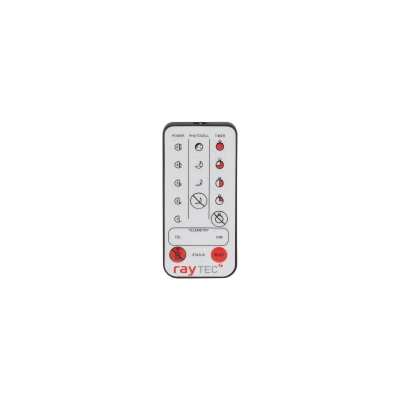

VARIO Remote Control (optional)

SPECIFICATIONS

Max Distance: 155m (509ft)
Angles and Max Distances:
10°x10° - 155m (509ft)
35°x10° - 92m (302ft)
60°x25° - 49m (161ft)
80°x30° - 35m (115ft)
120°x50° -25m (82ft)
Input: 15 - 24V AC/DC
Beam Shape: Elliptical with HRT (Hot Spot Reduction Technology)
Beam Angle System: VARIO interchangeable lens system
Consumption: 59W (including approx. camera consumption) 24W per LED panel
LED Type: Platinum Elite SMT LEDs
Number of LEDs: 24
Power Output (Luminous Flux): 3726lm
Wavelength: White-Light
