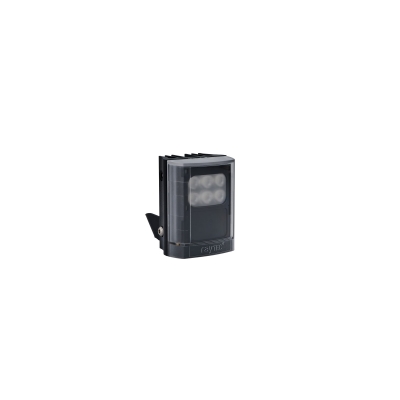

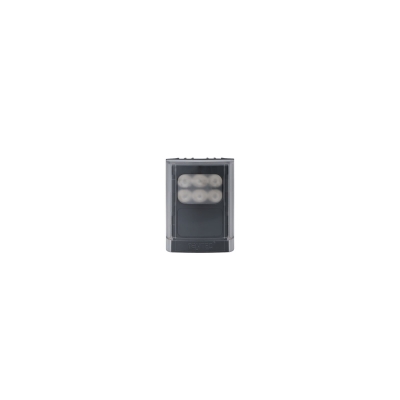

VARIO 2 - VAR2-i2-1 Short Range Infra-Red Illuminator

Specifications:

Distances:

Guide:

VARIO2 is the next generation of Infra-Red and White-Light illuminators from RayLED

Low Voltage Infra-Red Illuminators

OVERVIEW

VARIO2 is the next generation of Infra-Red and White-Light illuminators from Raytec. Using the latest PLATINUM Elite SMT LEDs, VARIO2 allows cameras to generate longer illumination distances using less power. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination where it is most needed. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 i2-1 Infra-Red series delivers maximum distances up to 78m (255ft).

KEY FEATURES

Low Voltage Infra-Red Illuminators
PLATINUM Elite SMT LED Technology
VARIO Interchangeable Lens System
Angles 10-120 degrees from 1 product
Hot-spot Reduction Technology (HRT)
VARIO Remote Control (optional)
Advanced Security Settings

SPECIFICATIONS

Max Distance: 78m (256ft)
Angles and Max Distances:
10°x10° - 78m (256ft)
35°x10° - 54m (177ft)
60°x25° - 36m (118ft)
80°x30° - 24m (79ft)
120°x50° - 18m (59ft)
Input: 12-24V AC/DC
Beam Shape: Elliptical with HRT
(Hot Spot Reduction Technology)
Beam Angle System: VARIO interchangeable lens system
Consumption:10W
LED Type: Platinum Elite SMT LEDs
Number of LEDs: 6
Wavelength: 850nm (940nm options available)
