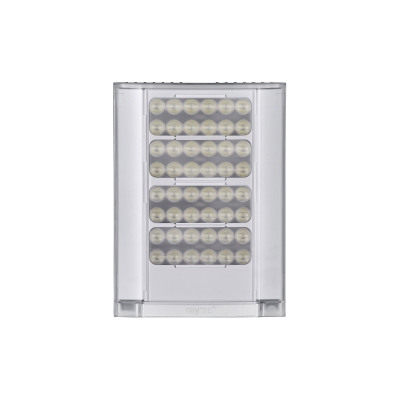

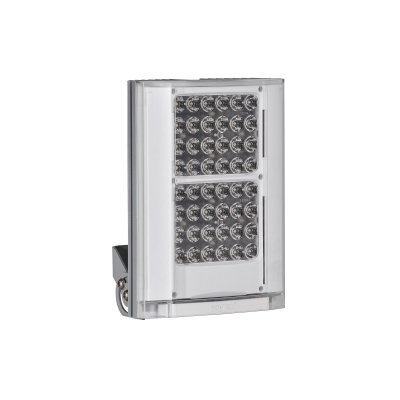

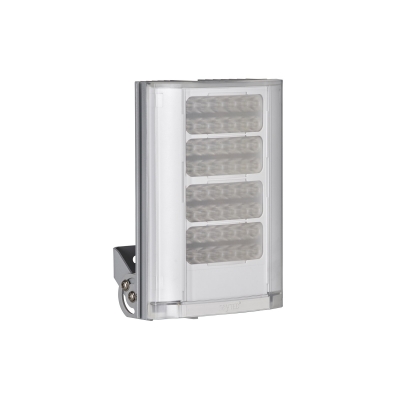

VARIO 2 - VAR2-w16-1 Long Range White-Light Illuminator

VARIO 2 - VAR2-w16-1 Long Range White-Light Illuminator




978.60

VAR2-w16-1
+
Specifications:
Distances:
Guide:


VARIO2 PoE is the next generation of Infra-Red and White-Light illuminators from RayLED

PoE Infra-Red Illuminators



OVERVIEW

VARIO2 is the next generation of Infra-Red and White-Light illuminators from Raytec. Using the latest PLATINUM Elite SMT LEDs, VARIO2 allows cameras to generate longer illumination distances using less power. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination where it is most needed. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 w16-1 White-Light series delivers maximum distances up to 210m (689ft).

KEY FEATURES

Low Voltage White-Light Illuminators
PLATINUM Elite SMT LED Technology

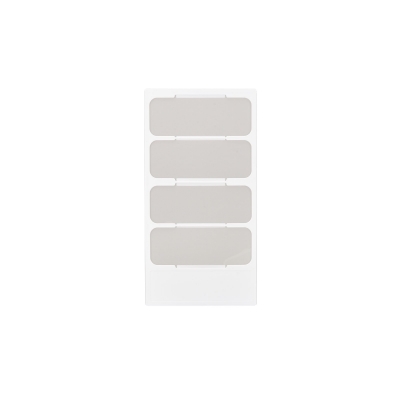

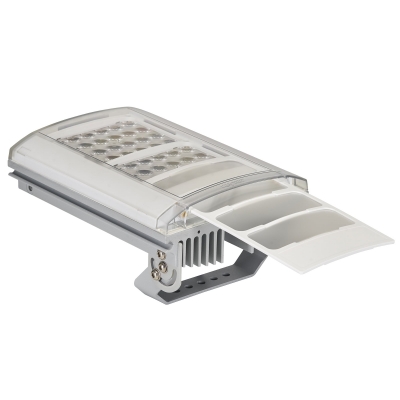

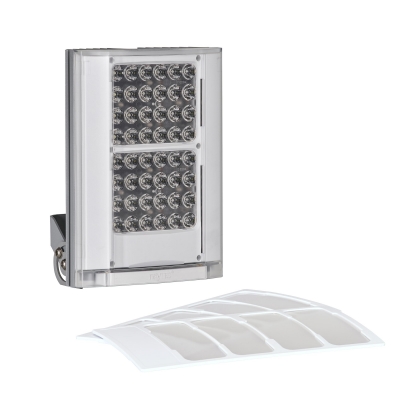

VARIO Interchangeable Lens System
Angles 10-120 degrees from 1 product
Hot-spot Reduction Technology (HRT)

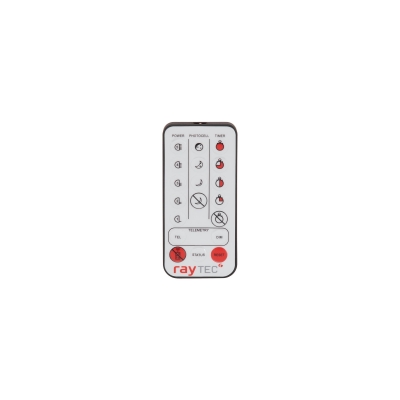

VARIO Remote Control (optional)
Advanced Security Settings

SPECIFICATIONS

Max Distance: 250m (820ft)
Angles and Max Distances:
10°x10° - 250m (820ft)
35°x10° - 125m (410ft)
60°x25° - 70m (230ft)
80°x30° - 48m (157ft)
120°x50° - 35m (115ft)
Input: 12-24V AC/DC
Beam Shape: Elliptical with HRT
(Hot Spot Reduction Technology)
Beam Angle System: VARIO interchangeable lens system
Consumption:84W
LED Type: Platinum Elite SMT LEDs
Number of LEDs: 48
Power Output (Luminous Flux):
Wavelength: White-Light
None
VARIO - Technical video :



VARIO2 - Next Generation Illumination :



VARIO - Go the Distance :
