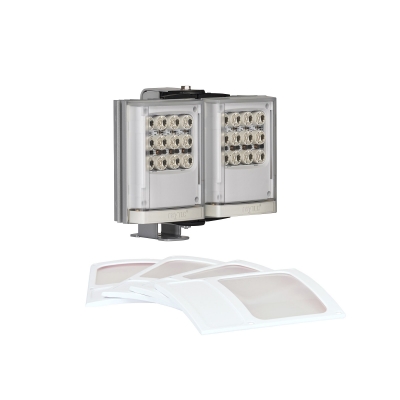

VARIO 2 - VAR2-w4-2 Medium Range White-Light Illuminator

VARIO 2 - VAR2-w4-2 Medium Range White-Light Illuminator




708.40

VAR2-w4-2
+
Specifications:
Distances:
Guide:


VARIO2 PoE is the next generation of Infra-Red and White-Light illuminators from RayLED

PoE Infra-Red Illuminators



OVERVIEW

VARIO2 is the next generation of Infra-Red and White-Light illuminators from Raytec. Using the latest PLATINUM Elite SMT LEDs, VARIO2 allows cameras to generate longer illumination distances using less power. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination where it is most needed. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 w4-2 Adaptive Illumination White-Light series delivers maximum distances up to 155m (509ft).

KEY FEATURES

Low Voltage White-Light Illuminators
PLATINUM Elite SMT LED Technology

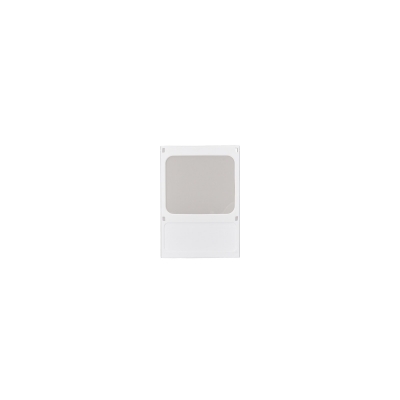

VARIO Interchangeable Lens System
Angles 10-120 degrees from 1 product
Hot-spot Reduction Technology (HRT)

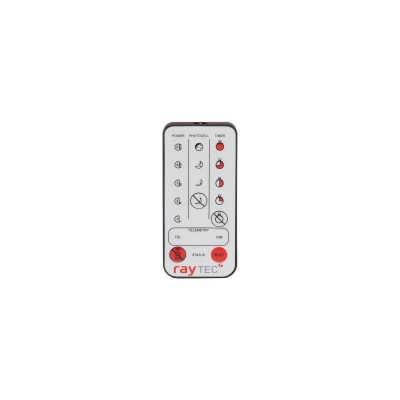

VARIO Remote Control (optional)
Adaptive Illumination
Advanced Security Settings

SPECIFICATIONS

Max Distance: 155m (509ft)
Angles and Max Distances:
10°x10° - 155m (509ft)
35°x10° - 92m (302ft)
60°x25° - 49m (161ft)
80°x30° - 35m (115ft)
120°x50° - 25m (82ft)
Input: 12-24V AC/DC
Beam Shape: Elliptical with HRT
(Hot Spot Reduction Technology)
Beam Angle System: VARIO interchangeable lens system
Consumption: 48W
LED Type: Platinum Elite SMT LEDs
Number of LEDs: 24
Power Output (Luminous Flux):3726lm per luminaire
Wavelength: White-Light
